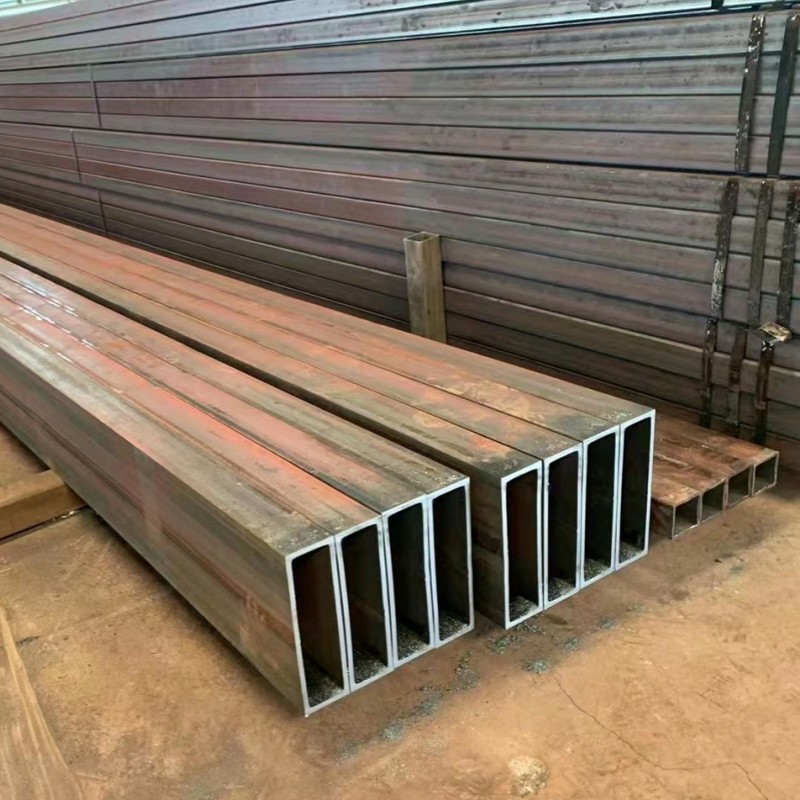

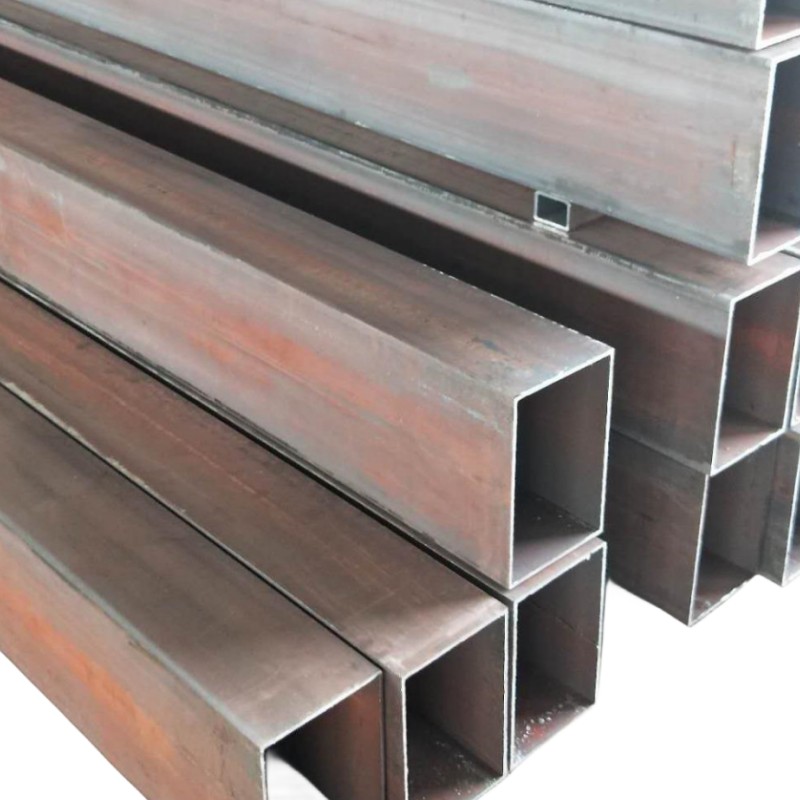

Size: 20*20-500*500mm or as the requirement,
large size steel tube above 500*500 can be produced.
Thickness: 1.3-40mm or as the requirement
Length: 5.8m/6m/12m or as the requirement
Product Specification
Size | 20*20-500*500mm or as the requirement, large size steel tube above 500*500 can be produced. |
Thickness | 1.3-40mm or as the requirement |
Length | 5.8m/6m/12m or as the requirement |
Steel grades | ASTM A500,ASTM A501,BS 1387,EN10219,EN10210,ASTM A53, JIS G3466, GB/T9711,GB/T3094,GB/T3091,GB/T6728 |
Application | Steel Frame Glass Curtain Wall Heavy steel structure Aerospace engineering High-speed rail Shipbuilding Seamless steel pipe for machinery Seamless steel pipes for automobiles and high-speed trains Seamless steel pipes for the chemical industry and boilers Seamless steel pipe for bridges |

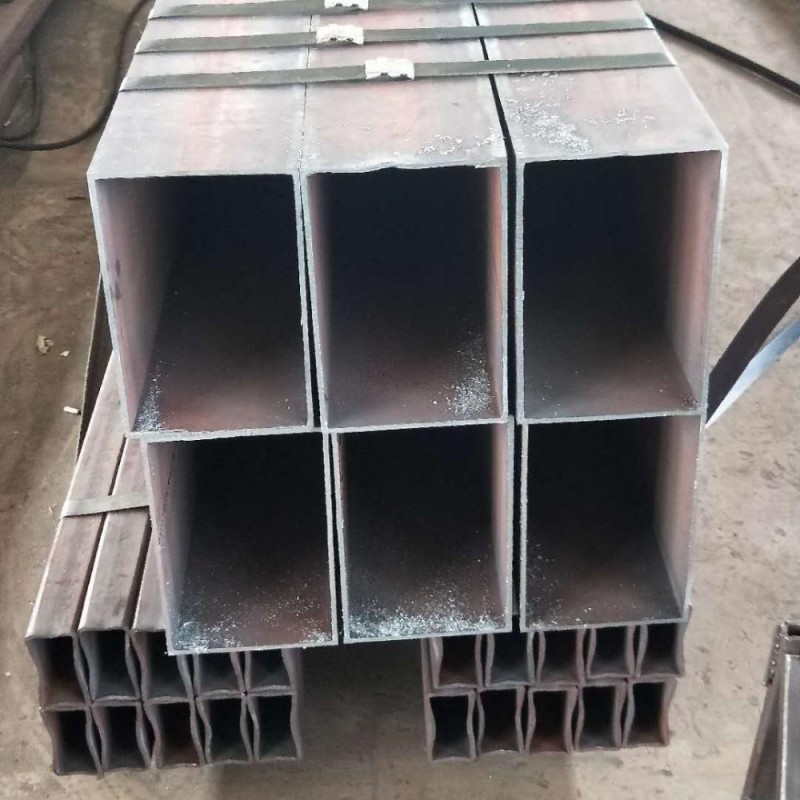

Package | in the bundle, or wrapped with waterproof cloth as per the customers' requirement |
Delivery Time | 7-30 days |
Loading Port | Xingang, Tianjin, China |
MOQ | 10 tons |
1. All the pipes are high-frequency welded. 2. Both inner and outer welded stabs can be removed. 3. Pipe can be necked down and punched holes. 4. Supplying BV or SGS Inspection if the client needs it. | |
Producing right angle tube requires a series of process steps, including material preparation, cutting, bending, welding, straightening, pickling, coating and cutting to the required length. The following is the general production process:
Material preparation: First, you need to prepare the required steel or other suitable materials. These materials are usually steel plates or coils and can be carbon steel, stainless steel, aluminum, etc.
Cutting: Steel is typically cut to the required width and length using a cutting machine. This can be done using equipment such as wire cutters, flame cutters, laser cutters, etc.
Bending: The cut material needs to be bent through a bending machine to form a right angle. This often requires precise craftsmanship and mechanical operations.
Welding: Joining curved pieces of material together through a welding process to form rectangular or square tubes. Common welding methods include arc welding, TIG welding, MIG welding, etc.
Straightening: The welded pipe may have some deformation, which needs to be corrected by a straightening machine to ensure the precise shape and size of the pipe.
Pickling: In order to remove the oxides and impurities produced by welding, the pipe is usually exposed to a pickling solution and then cleaned and rinsed.
Coatings: As needed, an anti-corrosion or lubricating layer can be applied to the pipe to extend its service life.
Cut to desired length: Finally, the pipe can be cut to the desired length as needed.
The entire production process requires high-precision equipment and technology to ensure the quality and accuracy of right angle tube. At the same time, relevant safety standards and quality control processes need to be followed to ensure that the products produced comply with specifications and standards.

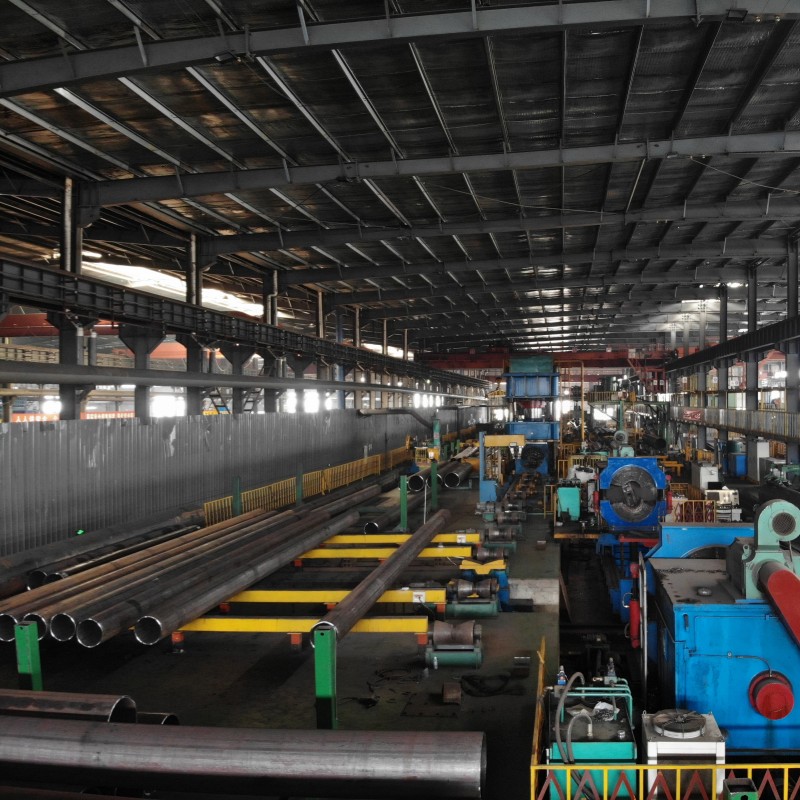

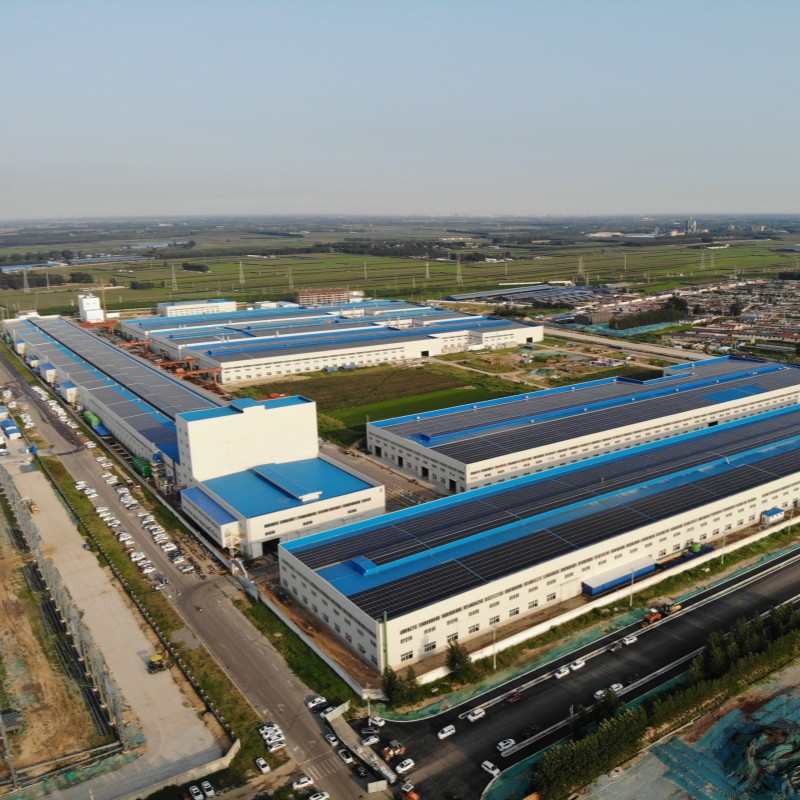

Our factory:
TIANJIN YUANTAI DERUN PIPE MANUFACTURING GROUP CO., LTD
