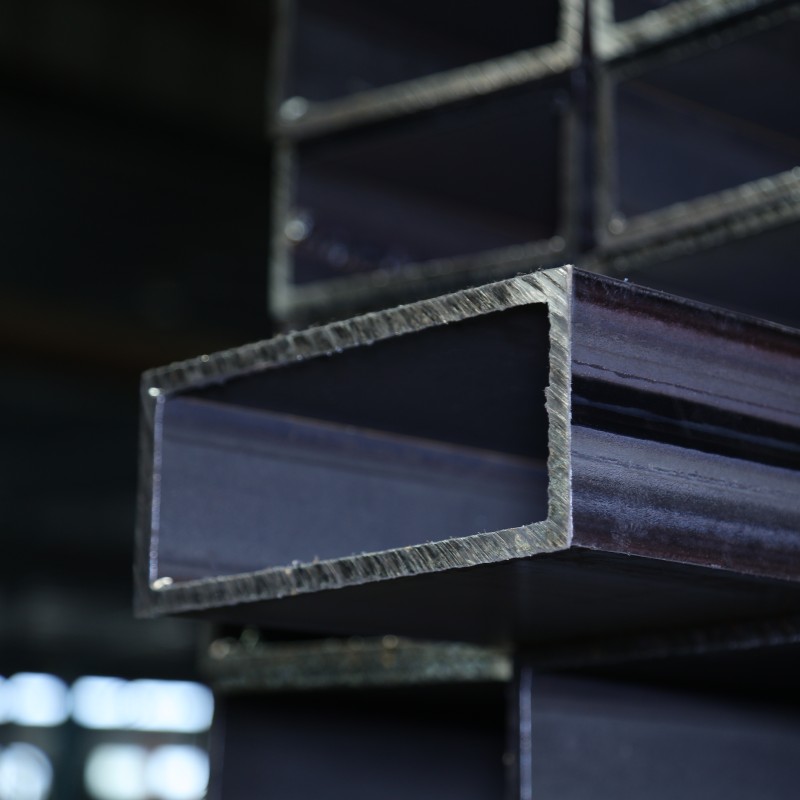

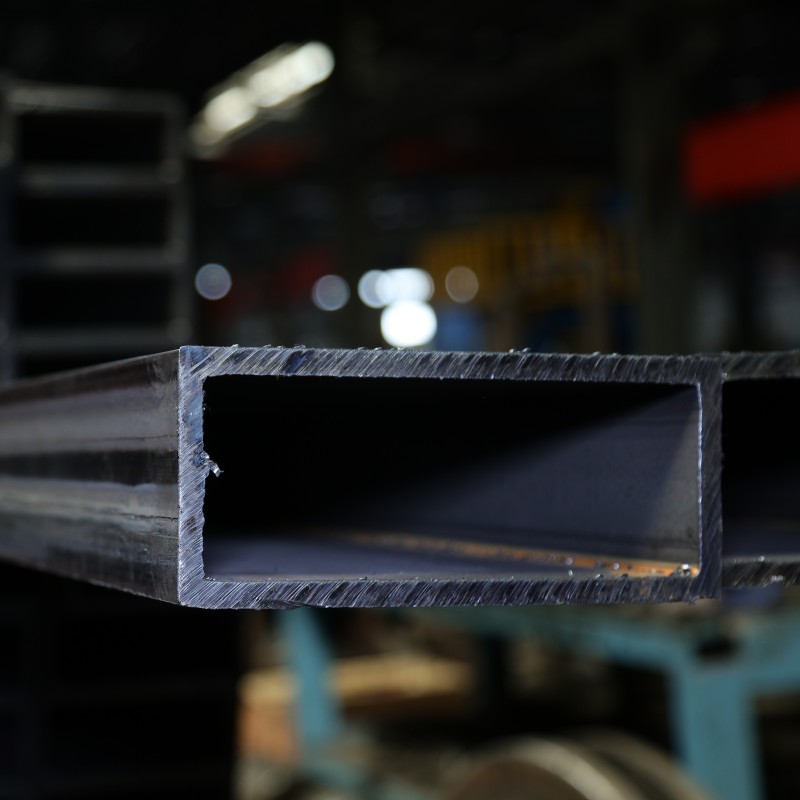

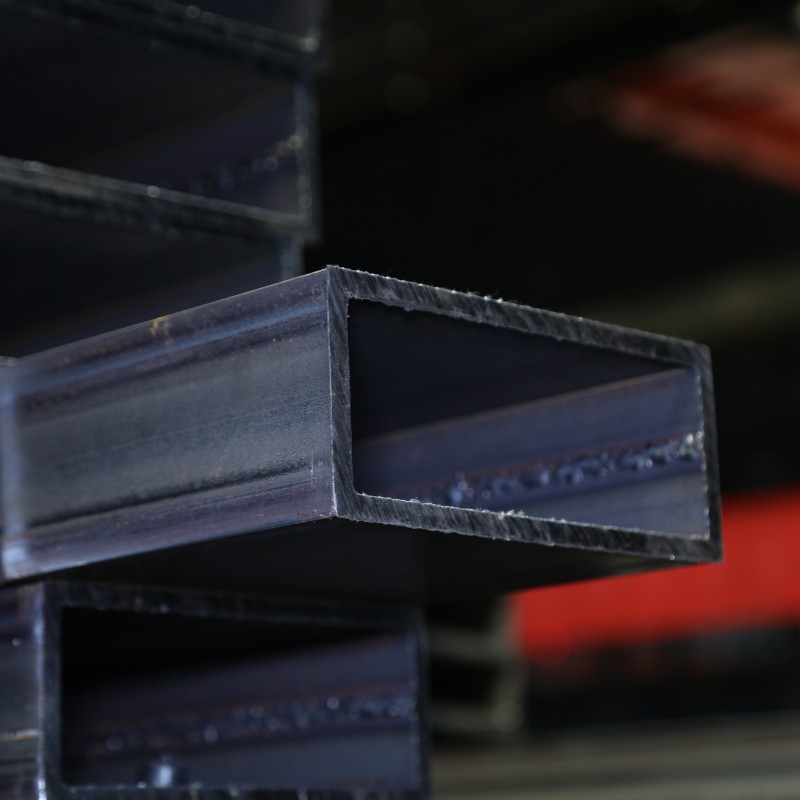

Size: 20*20-500*500mm or as the requirement，
large size steel tube above 500*500 can be produced.
Thickness: 1.3-40mm or as the requirement
Length: 5.8m/6m/12m or as the requirement
Product Specification
Size | 20*20-500*500mm or as the requirement, large size steel tube above 500*500 can be produced. |
Thickness | 1.3-40mm or as the requirement |
Length | 5.8m/6m/12m or as the requirement |
Steel grades | ASTM A500,ASTM A501,BS 1387,EN10219,EN10210,ASTM A53, JIS G3466, GB/T9711,GB/T3094,GB/T3091,GB/T6728 |
Application | Steel Frame Glass Curtain Wall Heavy steel structure Aerospace engineering High-speed rail Shipbuilding Seamless steel pipe for machinery Seamless steel pipes for automobiles and high-speed trains Seamless steel pipes for the chemical industry and boilers Seamless steel pipe for bridges |
Package | in the bundle, or wrapped with waterproof cloth as per the customers' requirement |
Delivery Time | 7-30 days |
Loading Port | Xingang, Tianjin, China |
MOQ | 10 tons |
1. All the pipes are high-frequency welded. 2. Both inner and outer welded stabs can be removed. 3. Pipe can be necked down and punched holes. 4. Supplying BV or SGS Inspection if the client needs it. | |
The glass curtain wall is a building curtain wall system composed of a steel or aluminum frame and glass embedded in the frame. Rectangular tubes are a common material used to construct glass curtain wall structures. The following will introduce in detail the application of square and rectangular tubes in glass curtain walls.
A square tube is a tube with a square or rectangular cross-section, usually made of steel or aluminum. They feature high structural strength, good stability, and corrosion resistance, making them ideal for building the skeleton of glass curtain walls. One of the advantages of square rectangular tubes is that they provide good stiffness and stability both transversely and longitudinally, allowing the curtain wall to withstand external wind pressure and self-weight loads.
In the structural design of glass curtain walls, square rectangular tubes can be used to construct the vertical and horizontal frames of the curtain wall. Vertical square rectangular tubes are usually used to support the self-weight of glass curtain walls and at the same time bear lateral wind pressure and wind load. Horizontal square tubes can be used to connect vertical frames and support the weight and wind loads of the glass curtain wall. The material selection and size of square and rectangular tubes should be determined based on specific design requirements and structural calculations.
Using square and rectangular tubes to construct glass curtain walls can achieve a variety of different design effects. For example, frames can be designed in different shapes and sizes to suit different building appearances and functional requirements. At the same time, the combination of square and rectangular tubes and glass can form a variety of appearance effects, such as transparent, translucent, or opaque combinations. In addition, the connection method between square and rectangular tubes and glass can also be selected according to needs, such as bolted connection, welding, or bonding.
However, when using square and rectangular tubes to construct glass curtain walls, the self-weight and deformation of the frame need to be taken into consideration. Since the density of square rectangular tubes is higher than that of glass, the structure and size of the frame need to be reasonably designed to ensure the stability and earthquake resistance of the curtain wall. In addition, the connection between the square tube and the glass must be strong and reliable to prevent the glass from falling off and breaking.

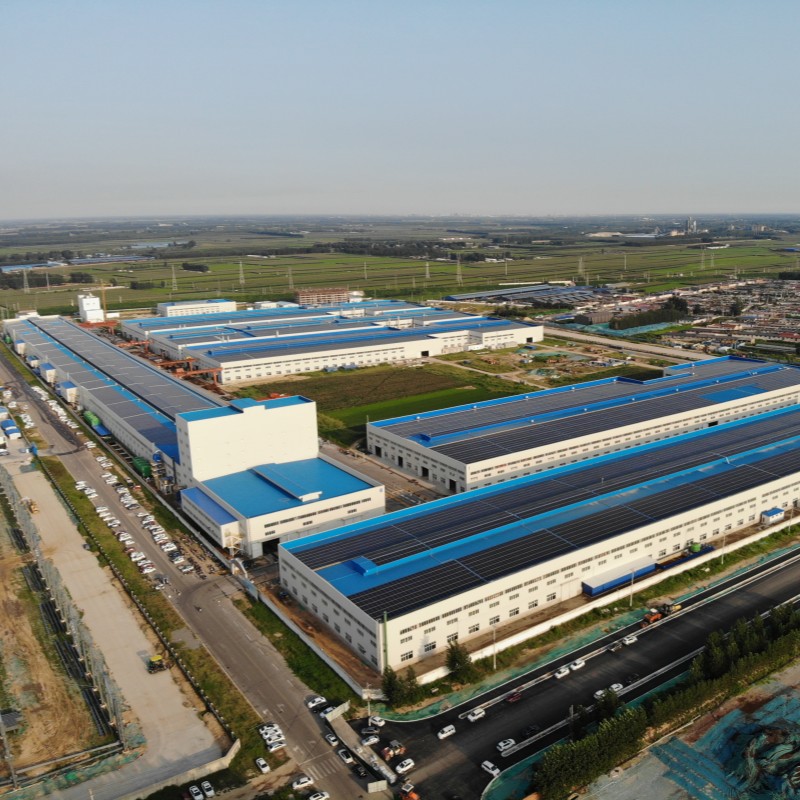

Our factory:
TIANJIN YUANTAI DERUN PIPE MANUFACTURING GROUP CO., LTD
