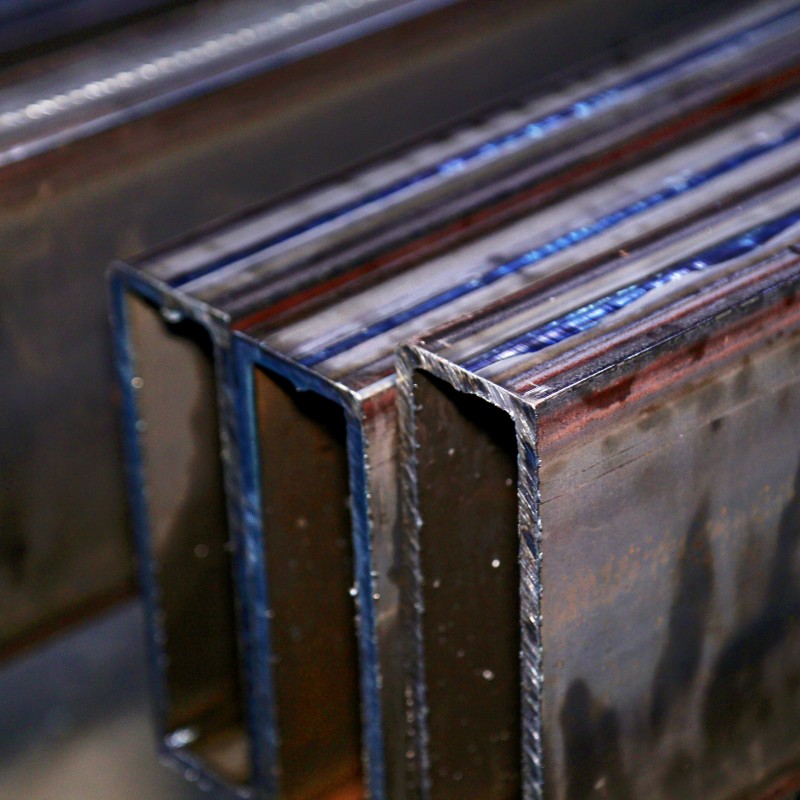

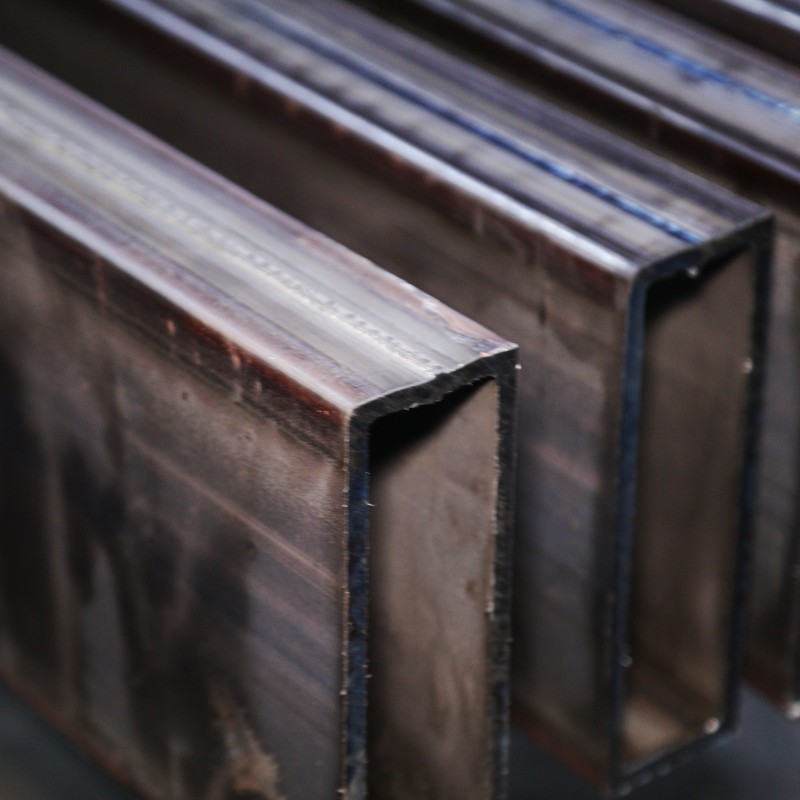

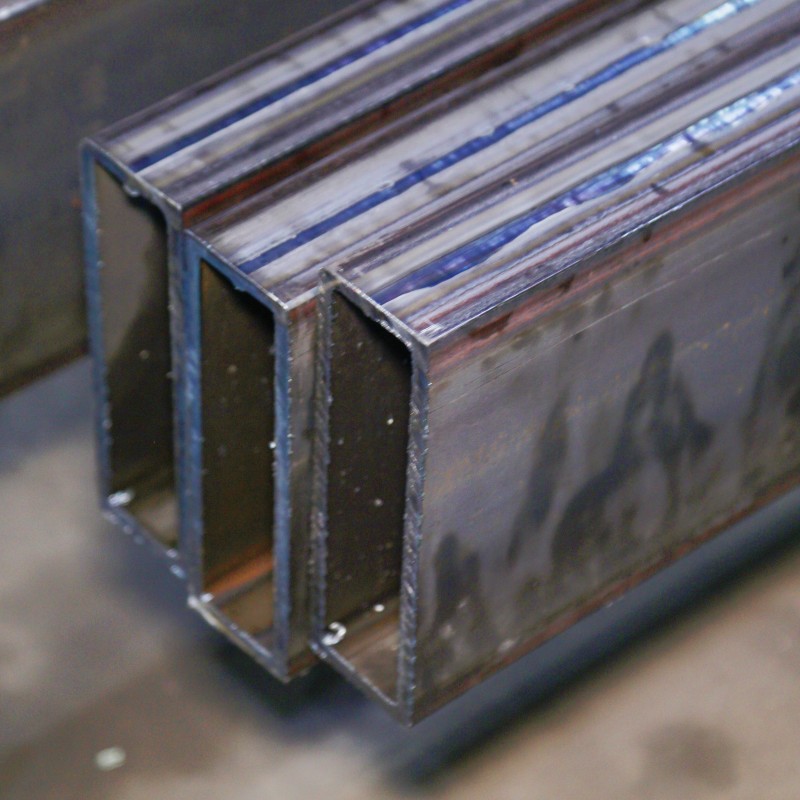

Square and Rectangular Steel Tube

Home >> products >> Steel Pipe & Steel tube >> Square and Rectangular Steel Tube

Steel Window Profiles
Steel Window Profiles
Steel Window Profiles
Steel Window Profiles
Steel Window Profiles

Size: 20*20-500*500mm or as the requirement,

large size steel tube above 500*500 can be produced.

Thickness: 1.3-40mm or as the requirement

Length: 5.8m/6m/12m or as the requirement

Requirements for glass curtain wall materials and equipment:

1. General regulations:

a. Materials for glass curtain walls should comply with the relevant provisions and design requirements of current national standards. Materials that do not yet have corresponding standards should comply with design requirements and should have factory certificates.

b. Weather-resistant materials should be used for glass curtain walls. Metal materials and metal parts, except for stainless steel and weathering steel, should be treated with hot-dip galvanizing, inorganic zinc-rich paint, or other effective anti-corrosion measures, and aluminum alloy materials should be treated with surface anodizing, electrophoretic painting, powder spraying or fluorocarbon paint spraying.

c. Glass curtain wall materials should be non-combustible or flame-retardant materials; fireproof sealing structures should use fireproof sealing materials.

d. For concealed frame and semi-concealed frame glass curtain walls, the bonding between glass and aluminum profiles must use neutral silicone structural sealant; when coated glass is used for all-glass curtain walls and point-supported curtain walls, acidic silicone structural sealant should not be used for bonding.

e. Silicone structural sealant and silicone building sealant must be used within the validity period.

2. Steel window profiles:

a. The steel window profiles of the glass curtain wall, such as square steel tubes, angle steel, channel steel, painted galvanized steel plates, and stainless steel, must meet the design requirements and select qualified products, and should be matched with aluminum alloy frame materials.

b. The aluminum alloy frame system is mostly a curtain wall frame profile formed by special extrusion. When selecting, it should be determined by the design according to the stress of the curtain wall frame and used in different series.

c. The brand of aluminum alloy materials used in the glass curtain wall, the quality of aluminum alloy materials, the doors and windows of the curtain wall, etc., should comply with the provisions of the current standards.

3. Embedded parts, fasteners and connectors:

a. The embedded parts and various connectors and bolts of the curtain wall are mostly made of low-carbon steel

b. The materials of angle steel, anchor bars, anchor plates, steel, and steel plate processing parts should comply with the relevant provisions of national standards and must be galvanized for rust prevention when used.


Steel Window Profiles3.jpg

Product Specification:

Size

20*20-500*500mm or as the requirement, large size steel tube above 500*500 can be produced.

Thickness

1.3-40mm or as the requirement

Length

5.8m/6m/12m or as the requirement

Steel grades

ASTM A500, ASTM A501, BS 1387, EN10219, EN10210, ASTM A53, JIS G3466,

GB/T9711, GB/T3094, GB/T3091, GB/T6728

Application

Steel Frame Glass Curtain Wall

Heavy steel structure

Aerospace engineering

High-speed rail

Shipbuilding

Seamless steel pipe for machinery

Seamless steel pipes for automobiles and high-speed trains

Seamless steel pipes for the chemical industry and boilers

Seamless steel pipe for bridges

Package

in the bundle, or wrapped with waterproof cloth as per the customers' requirement

Delivery Time

7-30 days

Loading Port

Xingang, Tianjin, China

MOQ

10 tons

1. All the pipes are high-frequency welded.

2. Both inner and outer welded stabs can be removed.

3. Pipe can be necked down and punched holes.

4. Supplying BV or SGS Inspection if the client needs it.
