Helical Pile

Home >> products >> Steel Pile >> Helical Pile

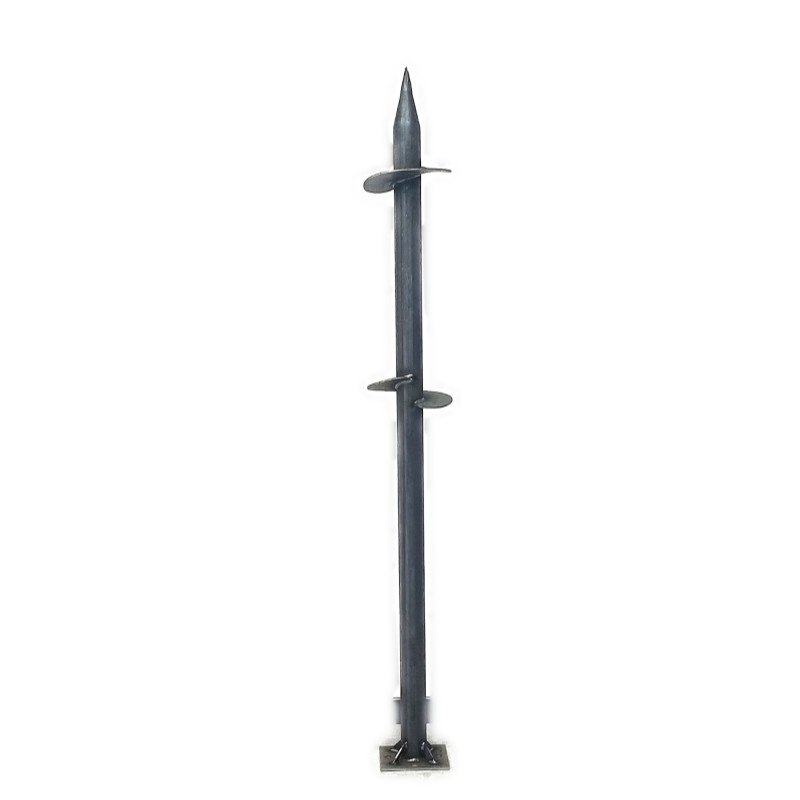

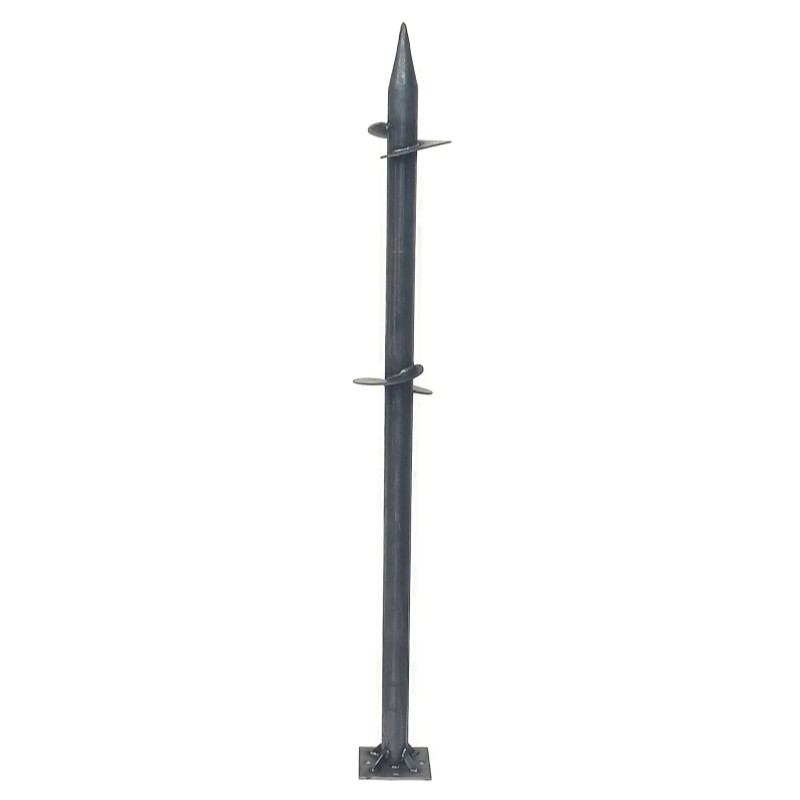

spiral pile
spiral pile
spiral pile
spiral pile
spiral pile
Material: hot galvanized steel

Length: 500mm-3500mm, or can be customized
Diameter: 48-114mm, 76mm is the most common use type

The spiral pile is made of high-strength steel, and its surface is usually hot-dip galvanized. When used as a foundation, its corrosion resistance and service life are effectively enhanced, and it gradually replaces the traditional concrete foundation in construction projects.

When used as a building foundation, due to the limited bearing capacity of the soil, when the foundation is not strong enough, the spiral pile can increase the stability and bearing capacity of the foundation, and the spiral shape of the spiral pile can be better fixed in the soil, providing greater pull-out resistance, and can effectively disperse the foundation bearing pressure and reduce the risk of foundation settlement.

With the increasing application of spiral piles in construction projects, compared with concrete foundations, there is no need to excavate foundation pits on a large scale, thereby reducing the disturbance to the soil and giving full play to the inherent strength of the original soil.

In addition, the spiral pile is simple to manufacture, easy to install, and has low noise and vibration. It can be installed and fully loaded in a limited space. It is also widely used in power transmission lines, marine engineering, and photovoltaic industries.

Advantages of spiral piles:

1. No need to damage the surrounding environment, no need to dig the land and pour cement, spiral piles are directly driven into the ground, which greatly reduces the project cost, no mud pollution, no waste soil transportation, and construction dust.

2. Using professional equipment, pile driving is simple and fast. After the pile driving is completed, the upper components can be installed immediately without waiting.

3. Construction requires very little space, and construction can be carried out, especially in cities with complex pipelines. After detection with professional detectors, the piles can be screwed into the narrow gaps of the pipelines, which is simple and efficient.

Concrete foundation

The urban pipeline network is complex, and pits are dug in many places. The pipelines and cables are complex. Traditional construction pit digging is extremely difficult and it is easy to damage the pipelines.

4. The construction cost is about half of the traditional cost.

5. Construction can be carried out as usual in severe weather such as snow and freezing, almost all-weather construction, and the impact on the environment is minimal.

6. After use, just rotate it in the opposite direction to pull it out. It can be reused. It is 100% energy-saving and environmentally friendly. It can be moved at will, reducing the impact on the environment. The remaining pollutants are zero. After being taken out, it does not damage the environment. It conforms to the new concept of energy saving, low consumption, and environmental protection.

7. Provide spiral pile processing products with guaranteed product quality, reducing problems caused by manual welding and labor costs.

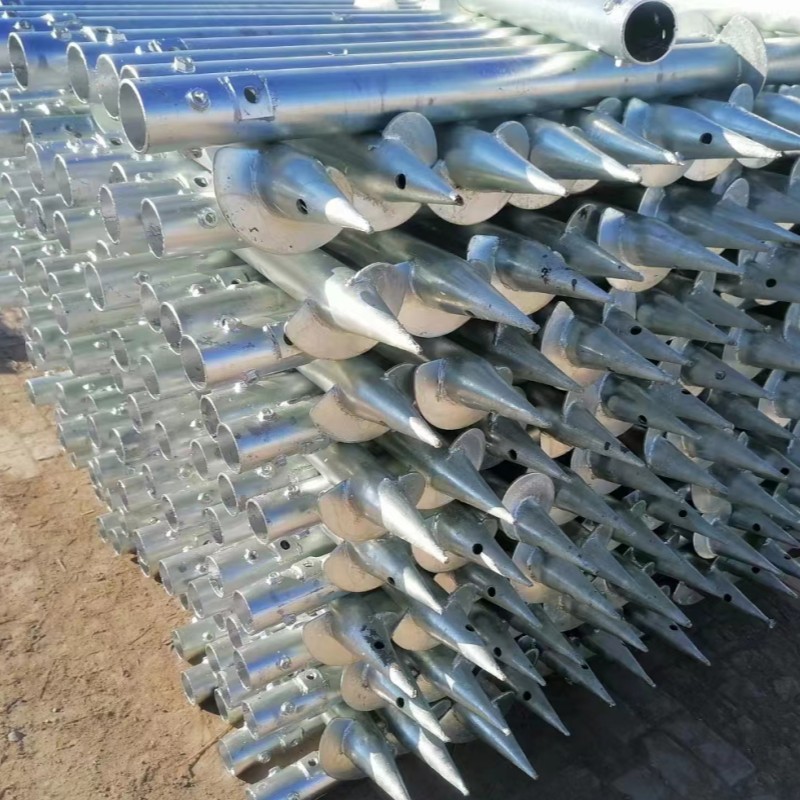

spiral pile1.jpg


Product Details:

Material

Hot-galvanized Steel, etc.

Length

500mm~3500mm, Customized

Diameter of Pipe

48~114mm, 76mm is the most common use type

Thickness of Pipe

2.75mm/3mm/3.5mm

Surface Finished

Hot-dipped Galvanized

Installed Site

Open Filed or Ground


Our factory:
